FlexRIO system planning and development

FlexRIO system planning and development

We take care of the complete planning and development of tailored systems based on FlexRIO for you. From selecting the appropriate hardware to software development, we program your solution precisely according to your requirements.
If there is no suitable FlexRIO module for your application yet, we are happy to develop individual modules according to your specifications. Share your requirements with us – we will implement a customized solution that seamlessly integrates into your system.
We take care of the complete planning and development of tailored systems based on FlexRIO for you. From selecting the appropriate hardware to software development, we program your solution precisely according to your requirements.
If there is no suitable FlexRIO module for your application yet, we are happy to develop individual modules according to your specifications. Share your requirements with us – we will implement a customized solution that seamlessly integrates into your system.

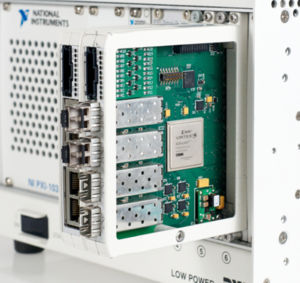

Example: FlexRIO fiber optic module

Example: FlexRIO fiber optic module

Example: FlexRIO fiber optic module

Testing fiber optic communication up to 2.5 Gbit/s based on National Instruments FlexRIO.

Complex systems such as phased array antennas involve a variety of control devices and distributed intelligent subsystems that are interconnected to exchange information.

This leads to requirements for increasingly faster bus systems with high data rates and short response times. The highest data rates at high interference immunity without electromagnetic radiation are achieved in transmission over fiber optic.

For testing such antenna control devices, tools are needed that record and evaluate the data sent by the device over fiber optic. On the other hand, the device must be supplied with a large amount of data through the optical interface and stimulated with various stimuli.

For the testing and design validation of a control device and its counterparts, IRS developed an interface for up to 16 receiving and 16 transmitting fiber optics. The basis of this system is FlexRIO cards from National Instruments, enhanced with adapter modules developed by IRS.

Testing fiber optic communication up to 2.5 Gbit/s based on National Instruments FlexRIO.

Complex systems such as phased array antennas involve a variety of control devices and distributed intelligent subsystems that are interconnected to exchange information.

This leads to requirements for increasingly faster bus systems with high data rates and short response times. The highest data rates at high interference immunity without electromagnetic radiation are achieved in transmission over fiber optic.

For testing such antenna control devices, tools are needed that record and evaluate the data sent by the device over fiber optic. On the other hand, the device must be supplied with a large amount of data through the optical interface and stimulated with various stimuli.

For the testing and design validation of a control device and its counterparts, IRS developed an interface for up to 16 receiving and 16 transmitting fiber optics. The basis of this system is FlexRIO cards from National Instruments, enhanced with adapter modules developed by IRS.

Example: FlexRIO Ethernet Interface

For recording traffic over Ethernet, there are software solutions. However, if one needs to demonstrate the precise timing behavior of a control device down to the range of a few nanoseconds, software solutions are not sufficient. In this case, it is necessary to implement hardware that accesses the physical interface.

The FlexRIO-PXI cards from National Instruments have proven to be an excellent basis for this challenge. They can be easily integrated into the existing PXI test system at the customer site and are extremely powerful for the fast processing and storage of large amounts of data.

IRS developed an adapter module as an addition to the FlexRIO base, which allows testing of up to 4 Ethernet interfaces. Additionally, digital channels are available, each of which logs every edge change with a timestamp. This allows for temporal correlations to be determined between the exact timestamps of the Ethernet frames and digital switching operations. The Ethernet frames and digital switching operations can be continuously streamed to disk with their respective 20ns timestamps.

An analysis tool exists for offline analysis to visualize the received data.

Generation and detection of pulse signals

In-house development of a FlexRIO adapter module based on customer specifications.
Generation and recording of pulses with adjustable pulse width and period duration for different voltage levels (TTL, CMOS, etc.) in the nanosecond range.
