The CAN FD card from IRS (CANny) enables the easy integration of 6 CAN-FD interfaces in a standard 19-inch carrier, which is used, for example, in industrial test systems.


CANny is used as a standalone card for CAN FD communication. It provides three CAN-FD controllers, each with two CAN-FD interfaces. Access to the CAN-FD channels can be made via Ethernet. Each of the controllers has its own IP address, ensuring communication.


Additionally, the standard FD-CANny offers 12 LIN interfaces, and the number of interfaces can be easily expanded by additional modules.

The CAN FD card from IRS (CANny) enables the easy integration of 6 CAN-FD interfaces in a standard 19-inch carrier, which is used, for example, in industrial test systems.


CANny is used as a standalone card for CAN FD communication. It provides three CAN-FD controllers, each with two CAN-FD interfaces. Access to the CAN-FD channels can be made via Ethernet. Each of the controllers has its own IP address, ensuring communication.


Additionally, the standard FD-CANny offers 12 LIN interfaces, and the number of interfaces can be easily expanded by additional modules.

Hardware Features

  • 6 CAN-FD channels (Bitrate up to 8 MBit/s)

  • Switchable CAN termination

  • 12 LIN channels

  • 5-port Ethernet switch

  • DIP switch for IP configuration

  • 24 VDC power supply voltage

Software Features CAN-FD

  • Simple TX/RX

  • Message counter for received frames

  • Echo/Repeater

  • Static bus simulation

  • Dynamic bus simulation with counters and CRC

  • ISOTP

  • EOL

  • Streaming of all sent/received frames

Software Features LIN

  • Master Scheduler

  • Slave Simulation

  • Streaming of all sent/received frames

Drivers for Module Configuration

  • LabVIEW

  • C#

Hardware Features

  • 6 CAN-FD channels (Bitrate up to 8 MBit/s)

  • Switchable CAN termination

  • 12 LIN channels

  • 5-port Ethernet switch

  • DIP switch for IP configuration

  • 24 VDC power supply voltage

Software Features CAN-FD

  • Simple TX/RX

  • Message counter for received frames

  • Echo/Repeater

  • Static bus simulation

  • Dynamic bus simulation with counters and CRC

  • ISOTP

  • EOL

  • Streaming of all sent/received frames

Software Features LIN

  • Master Scheduler

  • Slave Simulation

  • Streaming of all sent/received frames

Drivers for Module Configuration

  • LabVIEW

  • C#

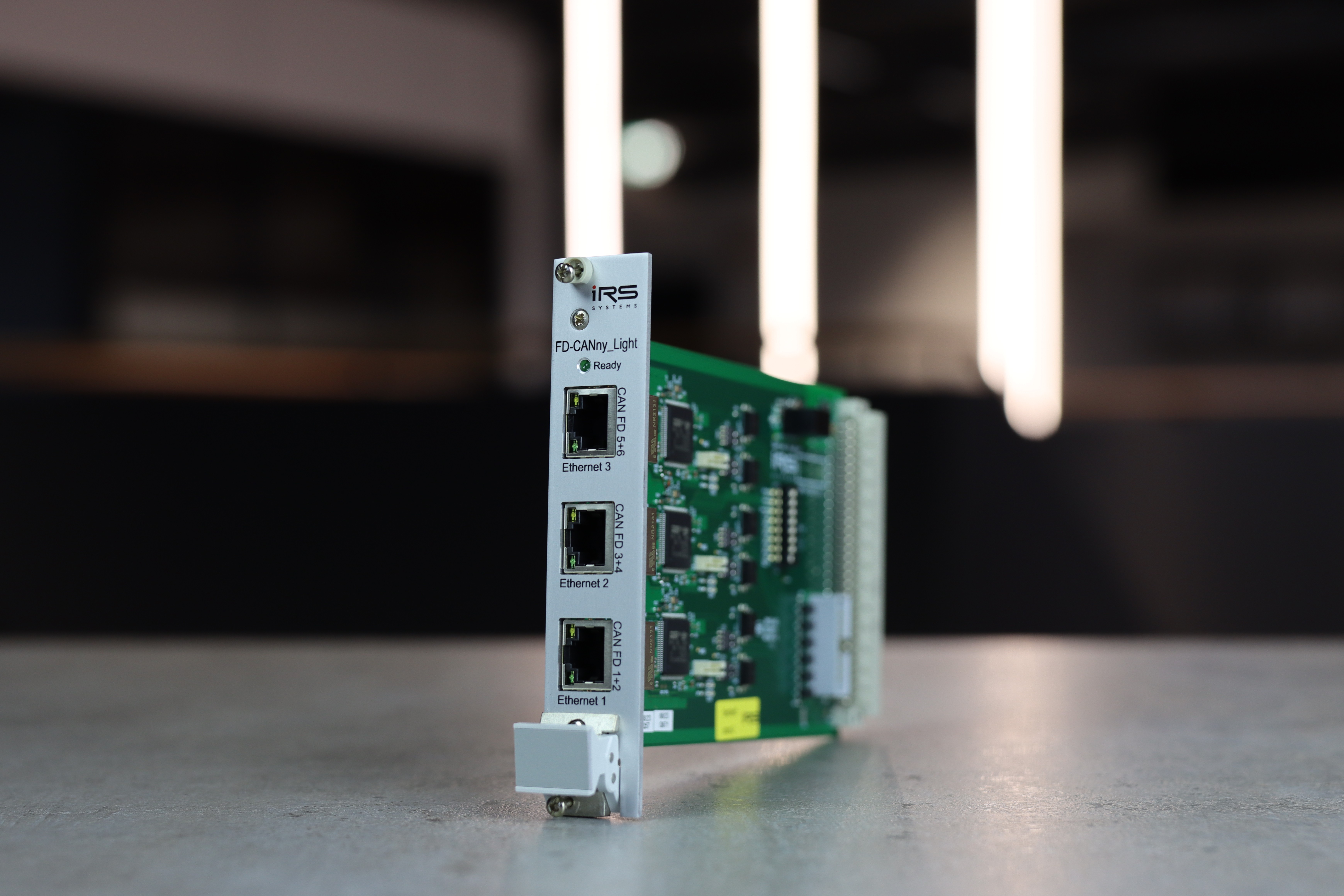

Canny Light

Canny Light

Canny Light

CAN-FD, but without 12 LIN channels and 5 port Ethernet switch

CAN-FD, but without 12 LIN channels and 5 port Ethernet switch

accessories

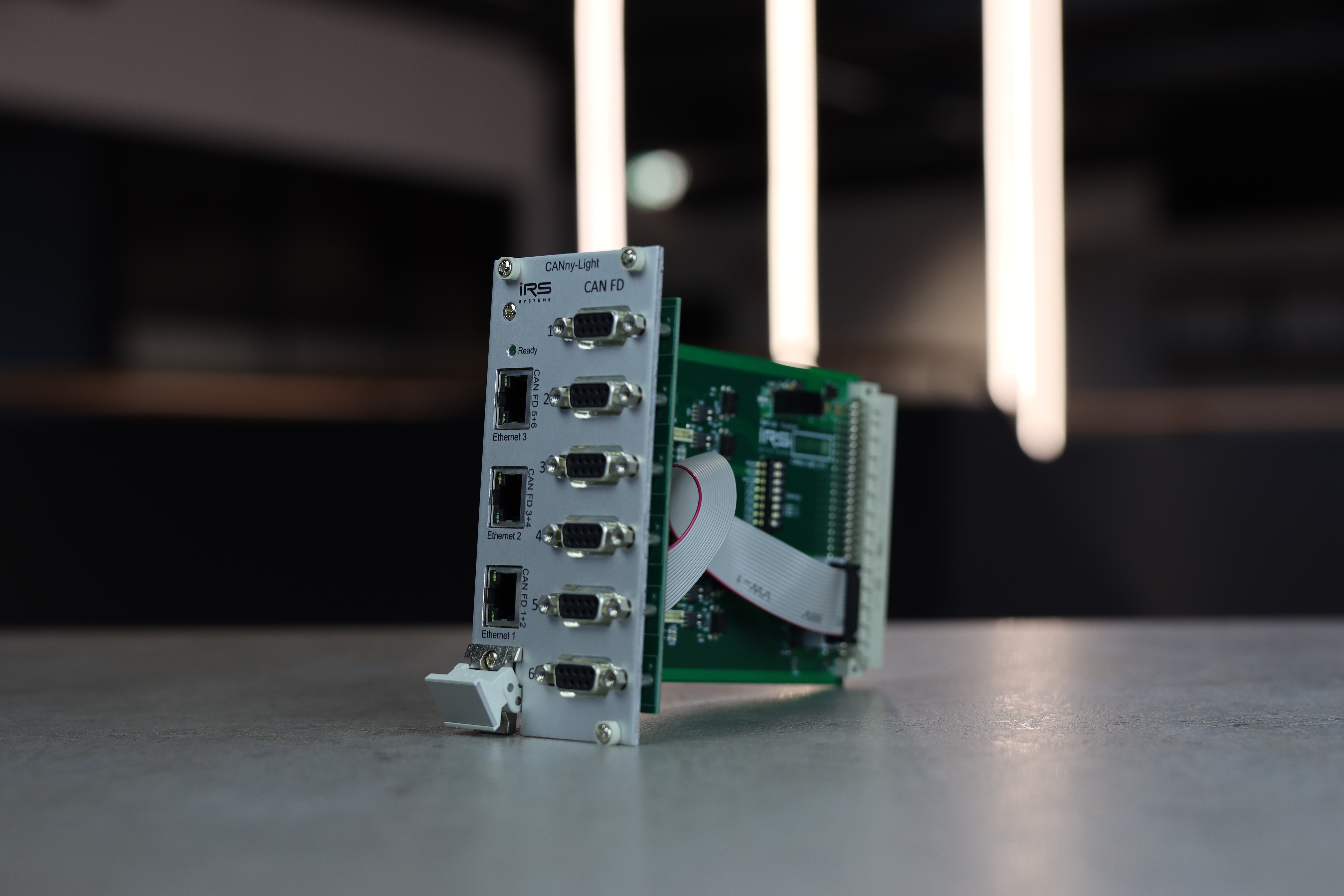

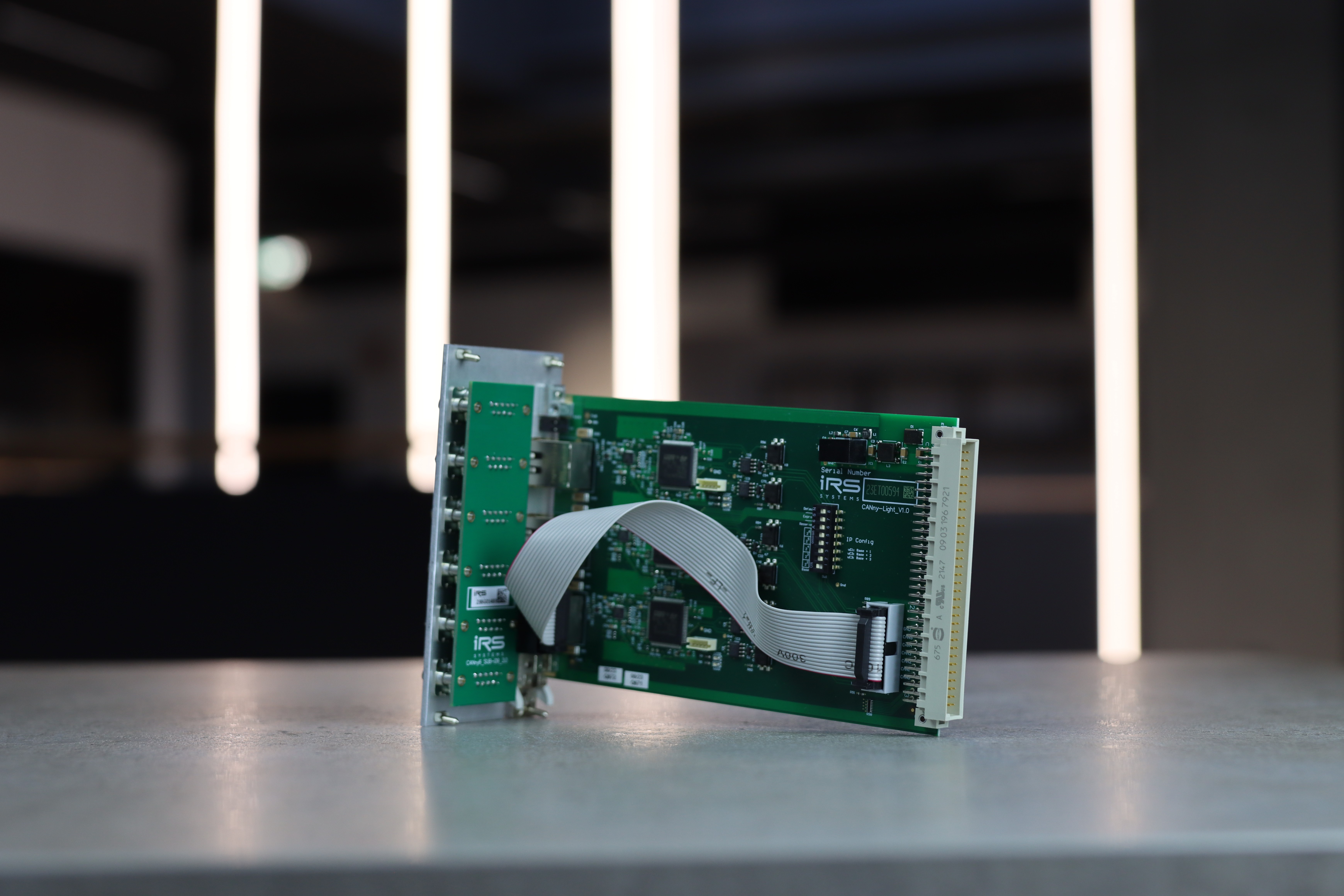

To output the 6 CAN-FD channels on the front panel via standard SUB-D9 connectors, e.g., for debugging

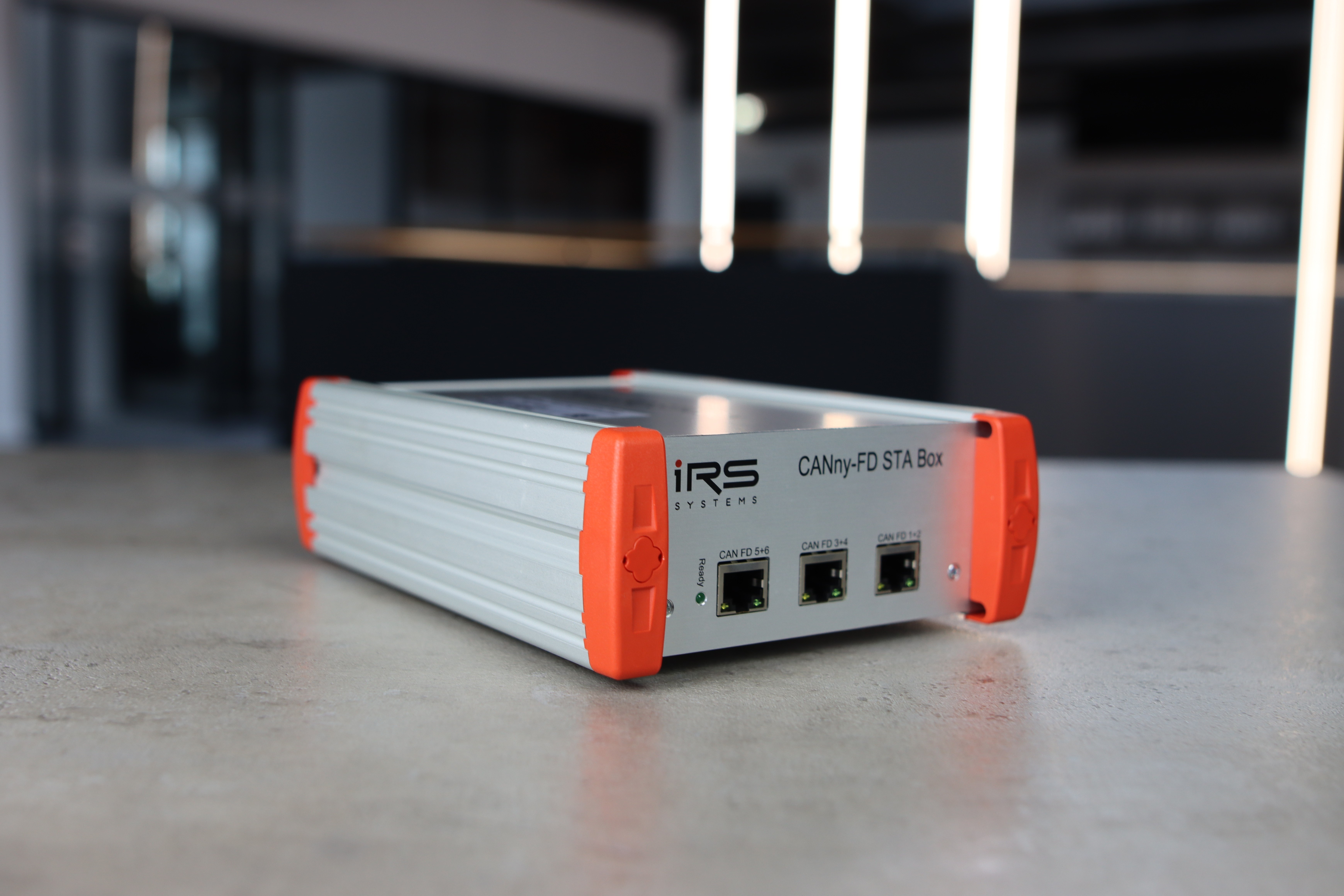

Both the CAN-FD and the CANny light can be integrated into a laboratory housing with custom interfaces according to customer specifications.
