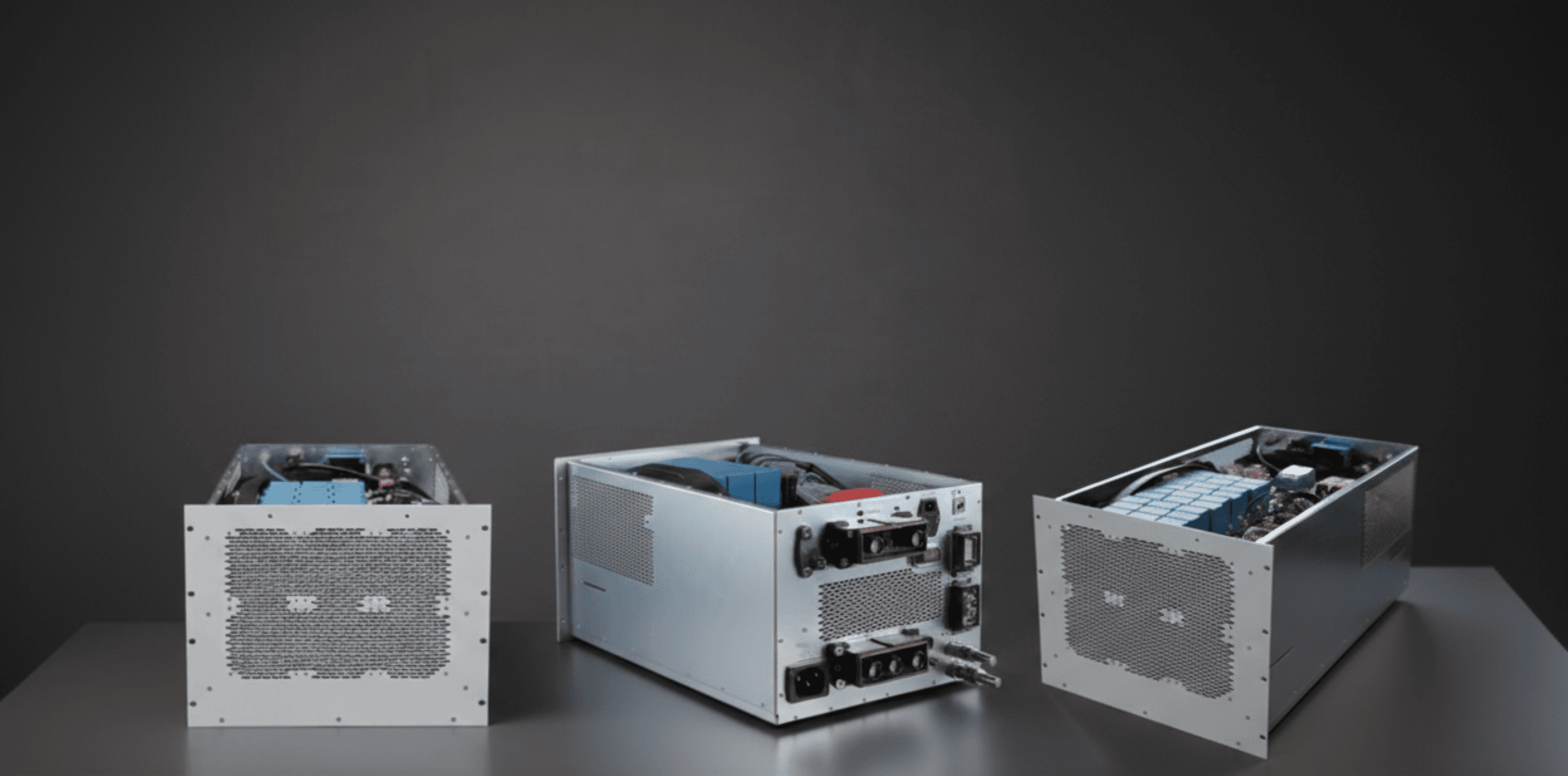

The IRS SiC Roadrunner is the compact solution for highly dynamic inverter tests. It combines the functions of our Active Motor Load Emulators in a space-saving, mobile rack and offers the highest efficiency with maximum flexibility. Ideal for applications in electromobility, power electronics, and energy technology, where precise and dynamic testing procedures for inverters and drive systems are crucial.
The IRS SiC Roadrunner is the compact solution for highly dynamic inverter tests. It combines the functions of our Active Motor Load Emulators in a space-saving, mobile rack and offers the highest efficiency with maximum flexibility. Ideal for applications in electromobility, power electronics, and energy technology, where precise and dynamic testing procedures for inverters and drive systems are crucial.
Technical Highlights
Compact Design – Everything in one 19" rack, mobile and easy to integrate.
High Efficiency – Efficiency rates of up to 99%.
Wide Frequency Range – Sine frequencies up to 4 kHz, switching frequencies up to 50 kHz.
Powerful – Simulated active power of up to 558 kW per 8HE power module.
Intuitive Operation of the Active Cooling Unit – Touchscreen with clear status display
Technical Description
The IRS SiC Roadrunner is a compact Active Motor Load Emulator specifically designed for the requirements of modern inverters. With a maximum DC voltage of 950 V and a DC current of up to 600 A, the system enables the simulation of highly dynamic load profiles under realistic conditions. Thanks to a wide frequency spectrum – sine frequencies up to 4,000 Hz and switching frequencies up to 50 kHz – the Roadrunner is ideal for testing in the fields of electromobility, power electronics, and the energy sector.
The simulated active power of the test specimen is an impressive 558 kW.
Despite this enormous test power, the system requires only a connection power of approximately 16–20 kW and is powered via a CEE three-phase power supply 400 V / 32 A (other variants, e.g., for US power grids, available upon request).
An integrated cooling unit ensures efficient heat dissipation and additionally provides supply and return connections for cooling the test specimen.
Therefore, even extremely powerful tests can be performed with minimal grid load and without external cooling infrastructure – a significant advantage for laboratories with limited resources and maximum cost efficiency due to low operating costs and the elimination of additional investments.
The emulator impresses with an efficiency of 98.74 %. This means that nearly all the energy used is utilized for simulation while losses remain minimal.
The system is housed in a robust, mobile rack and offers compact connector systems for connecting high-voltage lines, as well as standardized interfaces such as CAN and fiber optic communication (POF) for easy integration into existing test stands. The cooling circuits are easily accessible via supply and return connections. Operation is via an intuitive touch interface that allows for clear visualization of all operating states.
With its compact design, high performance, and flexible configuration options, the IRS SiC Roadrunner is the ideal solution for demanding inverter tests in the smallest space – all with a connection power that is insignificantly low compared to the simulated test power.
Application Areas
Validation and characterization of inverters for electromobility
Development and testing of high-voltage drive systems
Continuous operation and load tests under realistic load profiles
Research and development in power electronics
Industrial converters and inverters in energy technology
Integration and Interfaces
Power Supply: IEC three-phase power supply 400 V / 32 A
High Voltage Connection: Compact connector systems for DC and AC lines
Cooling: Integrated cooling unit with supply and return connections for the test specimen
Operation: Touchscreen interface for the active cooling unit, with status display and diagnostic functions
Technical Highlights
Compact Design – Everything in one 19" rack, mobile and easy to integrate.
High Efficiency – Efficiency rates of up to 99%.
Wide Frequency Range – Sine frequencies up to 4 kHz, switching frequencies up to 50 kHz.
Powerful – Simulated active power of up to 558 kW per 8HE power module.
Intuitive Operation of the Active Cooling Unit – Touchscreen with clear status display
Technical Description
The IRS SiC Roadrunner is a compact Active Motor Load Emulator specifically designed for the requirements of modern inverters. With a maximum DC voltage of 950 V and a DC current of up to 600 A, the system enables the simulation of highly dynamic load profiles under realistic conditions. Thanks to a wide frequency spectrum – sine frequencies up to 4,000 Hz and switching frequencies up to 50 kHz – the Roadrunner is ideal for testing in the fields of electromobility, power electronics, and the energy sector.
The simulated active power of the test specimen is an impressive 558 kW.
Despite this enormous test power, the system requires only a connection power of approximately 16–20 kW and is powered via a CEE three-phase power supply 400 V / 32 A (other variants, e.g., for US power grids, available upon request).
An integrated cooling unit ensures efficient heat dissipation and additionally provides supply and return connections for cooling the test specimen.
Therefore, even extremely powerful tests can be performed with minimal grid load and without external cooling infrastructure – a significant advantage for laboratories with limited resources and maximum cost efficiency due to low operating costs and the elimination of additional investments.
The emulator impresses with an efficiency of 98.74 %. This means that nearly all the energy used is utilized for simulation while losses remain minimal.
The system is housed in a robust, mobile rack and offers compact connector systems for connecting high-voltage lines, as well as standardized interfaces such as CAN and fiber optic communication (POF) for easy integration into existing test stands. The cooling circuits are easily accessible via supply and return connections. Operation is via an intuitive touch interface that allows for clear visualization of all operating states.
With its compact design, high performance, and flexible configuration options, the IRS SiC Roadrunner is the ideal solution for demanding inverter tests in the smallest space – all with a connection power that is insignificantly low compared to the simulated test power.
Application Areas
Validation and characterization of inverters for electromobility
Development and testing of high-voltage drive systems
Continuous operation and load tests under realistic load profiles
Research and development in power electronics
Industrial converters and inverters in energy technology
Integration and Interfaces
Power Supply: IEC three-phase power supply 400 V / 32 A
High Voltage Connection: Compact connector systems for DC and AC lines
Cooling: Integrated cooling unit with supply and return connections for the test specimen
Operation: Touchscreen interface for the active cooling unit, with status display and diagnostic functions
