cRIO Resolver Simulation & RVDT Simulation

cRIO Resolver Simulation & RVDT Simulation

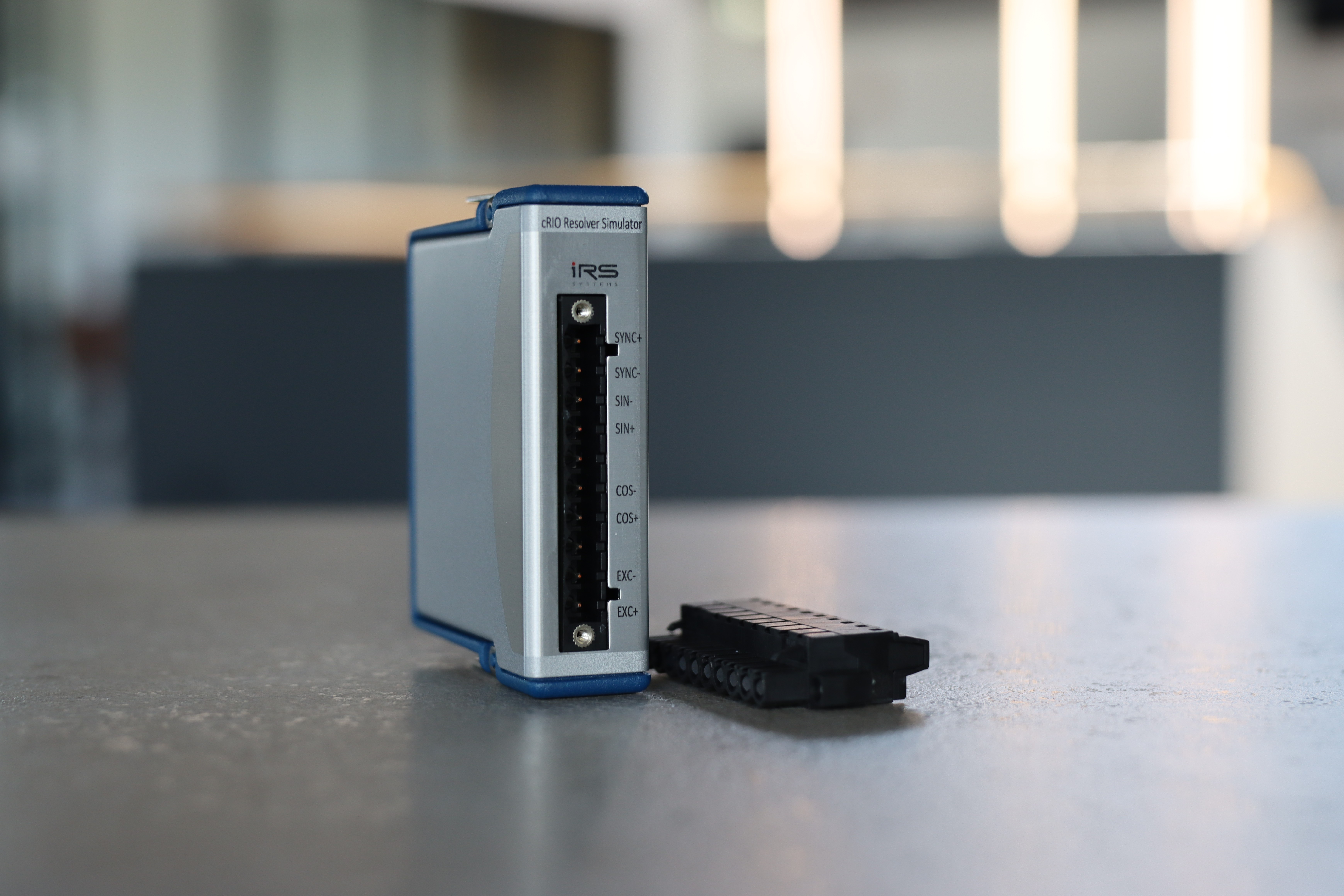

The “IRS cRIO Resolver Simulator” enables realistic simulation of resolver sensors and RVDT sensors (Rotary Variable Differential Transformer) in National Instruments Compact-RIO systems. It was specifically developed for testing applications in power electronics for electric machines (e.g., in electric and hybrid vehicles, in aviation, and many other applications) and provides an accurate representation of sensor signals for functional, end-of-line, or lifetime tests.


Technical Description

Resolver Simulation

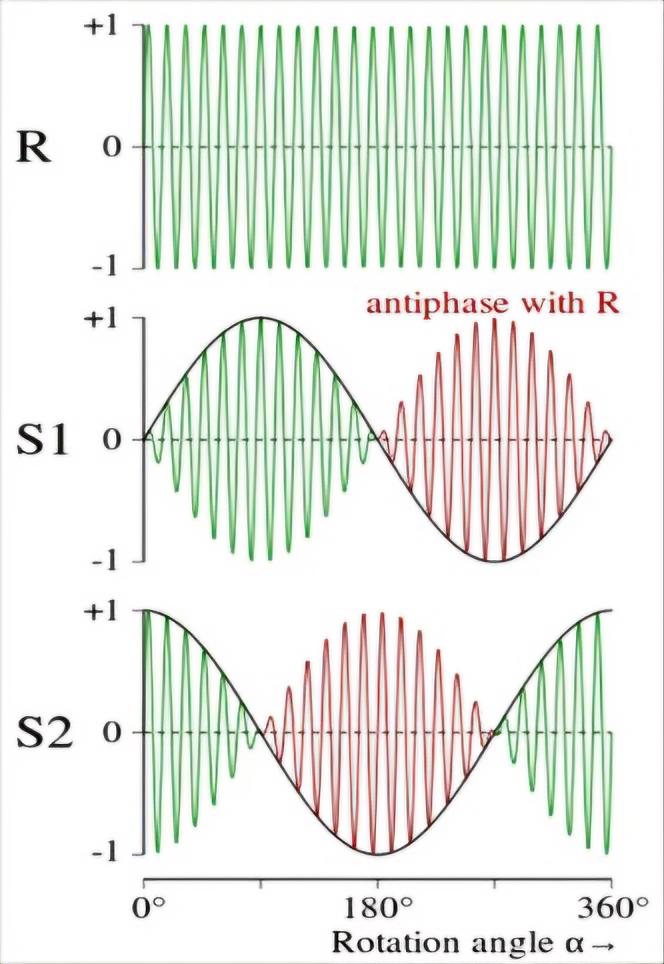

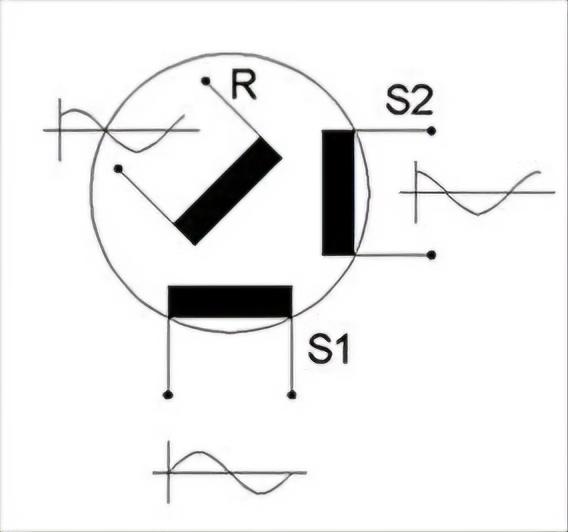

Resolver sensors are commonly used in electric drives of hybrid and electric vehicles to accurately measure the rotor position and its speed. The cRIO module emulates the function of a real resolver sensor by generating an amplitude-modulated signal that is dependent on the current rotor position.



RVDT Simulation

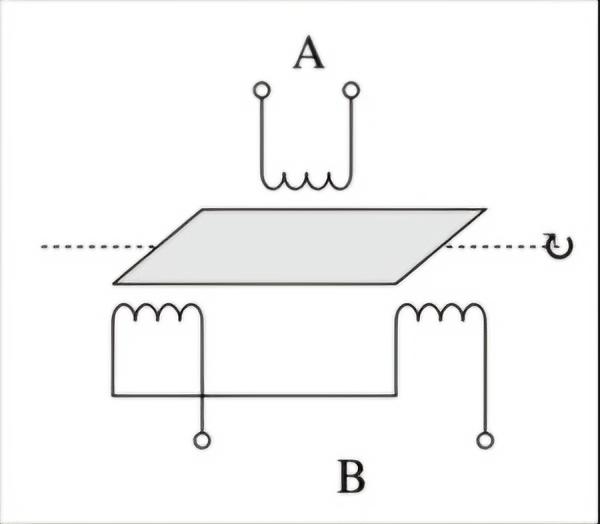

The RVDT sensor is used for precise measurement of angular displacements and is often employed in aerospace due to its robustness. The cRIO module realistically simulates the operating principle of an RVDT, where a rotating metal core induces a differential voltage in the secondary windings.

The “IRS cRIO Resolver Simulator” enables realistic simulation of resolver sensors and RVDT sensors (Rotary Variable Differential Transformer) in National Instruments Compact-RIO systems. It was specifically developed for testing applications in power electronics for electric machines (e.g., in electric and hybrid vehicles, in aviation, and many other applications) and provides an accurate representation of sensor signals for functional, end-of-line, or lifetime tests.


Technical Description

Resolver Simulation

Resolver sensors are commonly used in electric drives of hybrid and electric vehicles to accurately measure the rotor position and its speed. The cRIO module emulates the function of a real resolver sensor by generating an amplitude-modulated signal that is dependent on the current rotor position.



RVDT Simulation

The RVDT sensor is used for precise measurement of angular displacements and is often employed in aerospace due to its robustness. The cRIO module realistically simulates the operating principle of an RVDT, where a rotating metal core induces a differential voltage in the secondary windings.

Technical Specifications

  • Exciter Reference Input:

    • Input Voltage Range: Up to 20 Vpp

    • Input Resistance (@10 kHz, inductive): 2000 Ω

    • Input Signal Frequency: 2 … 20 kHz

  • SYNC Input:

    • Voltage Input Range (Peak Voltage): 5 … 50 Vpeak

    • Detection Threshold: 3 V

    • Input Frequency: 1 … 200 Hz

    • Input Current (at U > 3V): 2 … 7 mA

  • Sine/Cosine Output:

    • Output Level (dependent on software settings): 0 … 20 Vpp

    • Output Resistance (@2.5 … 10 kHz): 5 … 20 Ω

  • Transmission Ratio Input/Output: freely configurable (via software) from 0.1-10

    • Temperature Range: -20 °C to +55 °C

    • Software: Sample software for the cRIO available in LabVIEW


Areas of Application

  • Electric and Hybrid Vehicles, Electric Machines, Aerospace, and Industrial Applications: Optimization and validation of inverter solutions as well as control units through precise simulation of position signals in high-performance environments, e.g., in drive systems, flight controls, robotics, and automation technology.

  • Design Validation and End-of-Line Testing: Functional tests without the use of original motors and sensors.

  • Research and Development: The module enables efficient development and testing of inverter controllers in various applications, thereby enhancing the reliability and performance of power electronics.


Through flexible configuration and integration into existing systems, the "IRS cRIO Resolver Simulator" module provides an efficient solution for sensor simulation in various industrial applications.

Technical Specifications

  • Exciter Reference Input:

    • Input Voltage Range: Up to 20 Vpp

    • Input Resistance (@10 kHz, inductive): 2000 Ω

    • Input Signal Frequency: 2 … 20 kHz

  • SYNC Input:

    • Voltage Input Range (Peak Voltage): 5 … 50 Vpeak

    • Detection Threshold: 3 V

    • Input Frequency: 1 … 200 Hz

    • Input Current (at U > 3V): 2 … 7 mA

  • Sine/Cosine Output:

    • Output Level (dependent on software settings): 0 … 20 Vpp

    • Output Resistance (@2.5 … 10 kHz): 5 … 20 Ω

  • Transmission Ratio Input/Output: freely configurable (via software) from 0.1-10

    • Temperature Range: -20 °C to +55 °C

    • Software: Sample software for the cRIO available in LabVIEW


Areas of Application

  • Electric and Hybrid Vehicles, Electric Machines, Aerospace, and Industrial Applications: Optimization and validation of inverter solutions as well as control units through precise simulation of position signals in high-performance environments, e.g., in drive systems, flight controls, robotics, and automation technology.

  • Design Validation and End-of-Line Testing: Functional tests without the use of original motors and sensors.

  • Research and Development: The module enables efficient development and testing of inverter controllers in various applications, thereby enhancing the reliability and performance of power electronics.


Through flexible configuration and integration into existing systems, the "IRS cRIO Resolver Simulator" module provides an efficient solution for sensor simulation in various industrial applications.
