Custom Hardware Components



We develop custom hardware components according to your requirements and tailored to your environment. A particular area of expertise focuses on solutions for parallel testing with a variety of test subjects/channels.


Examples are:

  • Testing system for controlling and monitoring test subjects with a variety of connections (e.g., automotive body controller)

    • 128 analog inputs with sampling rates of up to 1 MHz

    • 100 switching outputs (relays, open-drain, open-collector)

    • 10 CAN interfaces

    • 10 serial interfaces

    • 22 digital I/Os


  • Testing systems with power sources for pulsing LEDs

    • up to 280 channels in a 19" rack

    • currents from 100 µA to 6 A

    • pulse durations from 1 µs to 10 s


  • Testing systems for characterizing battery cells

    • up to 240 channels in a 19" rack

    • parallel charging/discharging of cells with up to 10 A per cell

    • measurement of cell voltage, capacity, and internal resistance



To implement these systems, we use among others:

  • Embedded systems from National Instruments (PXI, cRIO, sbRIO)

  • Microcontrollers from STMicroelectronics

  • FPGAs from Xilinx

  • High-precision analog-to-digital converters from Analog Devices



Already during the development, we pay attention to EMC-compliant hardware design. We verify the interference immunity and emissions of our devices in our in-house EMC laboratory.

Custom Hardware Components



We develop custom hardware components according to your requirements and adapted to your environment. A particular area of expertise lies in solutions for parallel testing with a variety of specimens/channels.


Examples are:

  • Measurement system for controlling and monitoring specimens with a variety of connections (e.g. automotive body controller)

    • 128 analog inputs with sampling rates of up to 1 MHz

    • 100 switch outputs (relays, open-drain, open-collector)

    • 10 CAN interfaces

    • 10 serial interfaces

    • 22 digital I/Os


  • Test systems with power sources for pulsing LEDs

    • up to 280 channels in a 19" rack

    • currents from 100 µA to 6 A

    • pulse duration from 1 µs to 10 s


  • Test systems for characterizing battery cells

    • up to 240 channels in a 19" rack

    • parallel charging/discharging of the cells with up to 10 A per cell

    • measurement of cell voltage, capacity, and internal resistance



To realize these systems, we use among other things:

  • Embedded systems from National Instruments (PXI, cRIO, sbRIO)

  • Microcontrollers from STMicroelectronics

  • FPGAs from Xilinx

  • High-precision analog-to-digital converters from Analog Devices



Already in the development phase, we pay attention to an EMC-compliant hardware design. We check the immunity and emissions of our devices in our in-house EMC laboratory.

Calibration

Calibration
Calibration

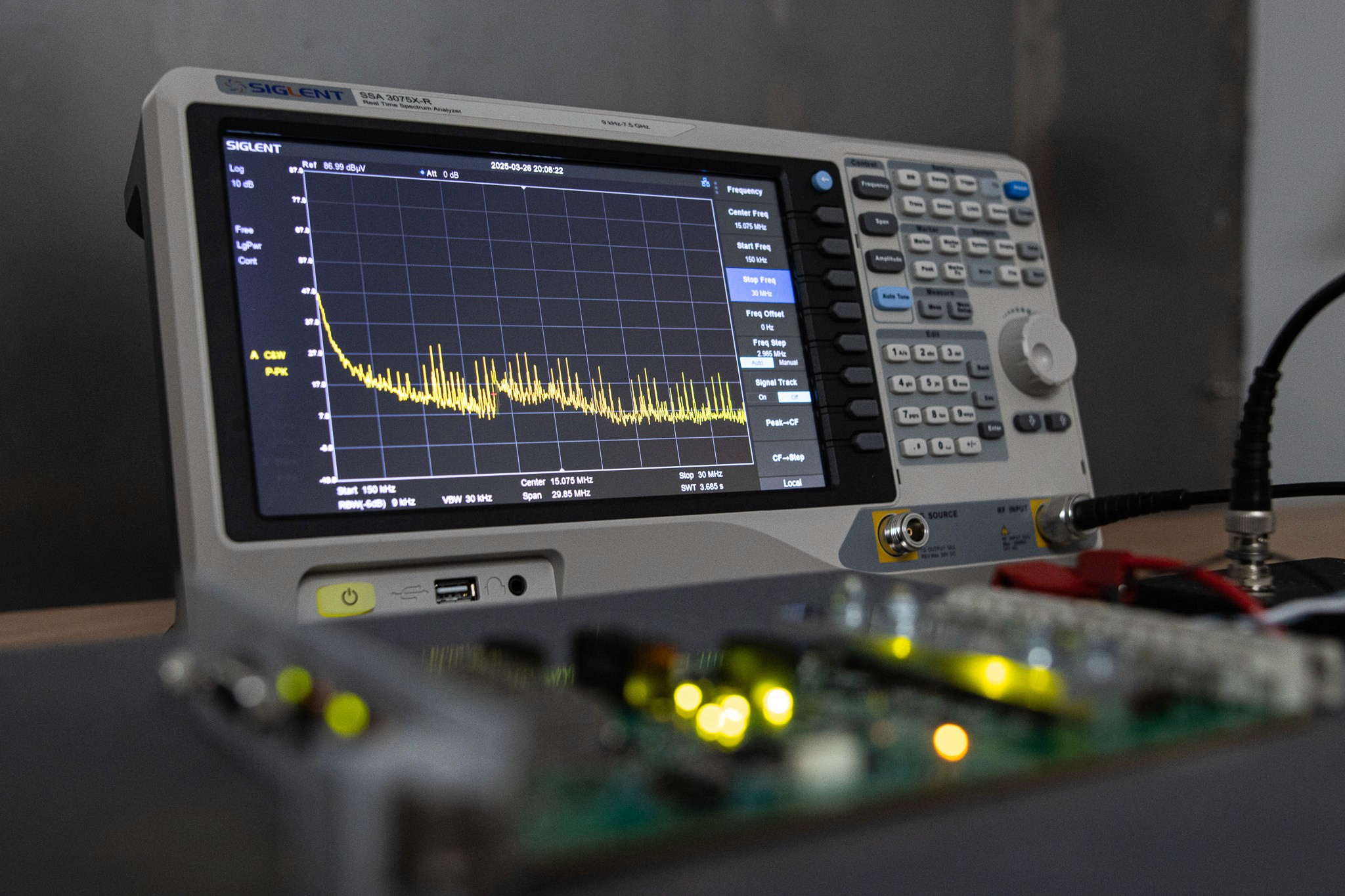

EMV

EMV
EMV

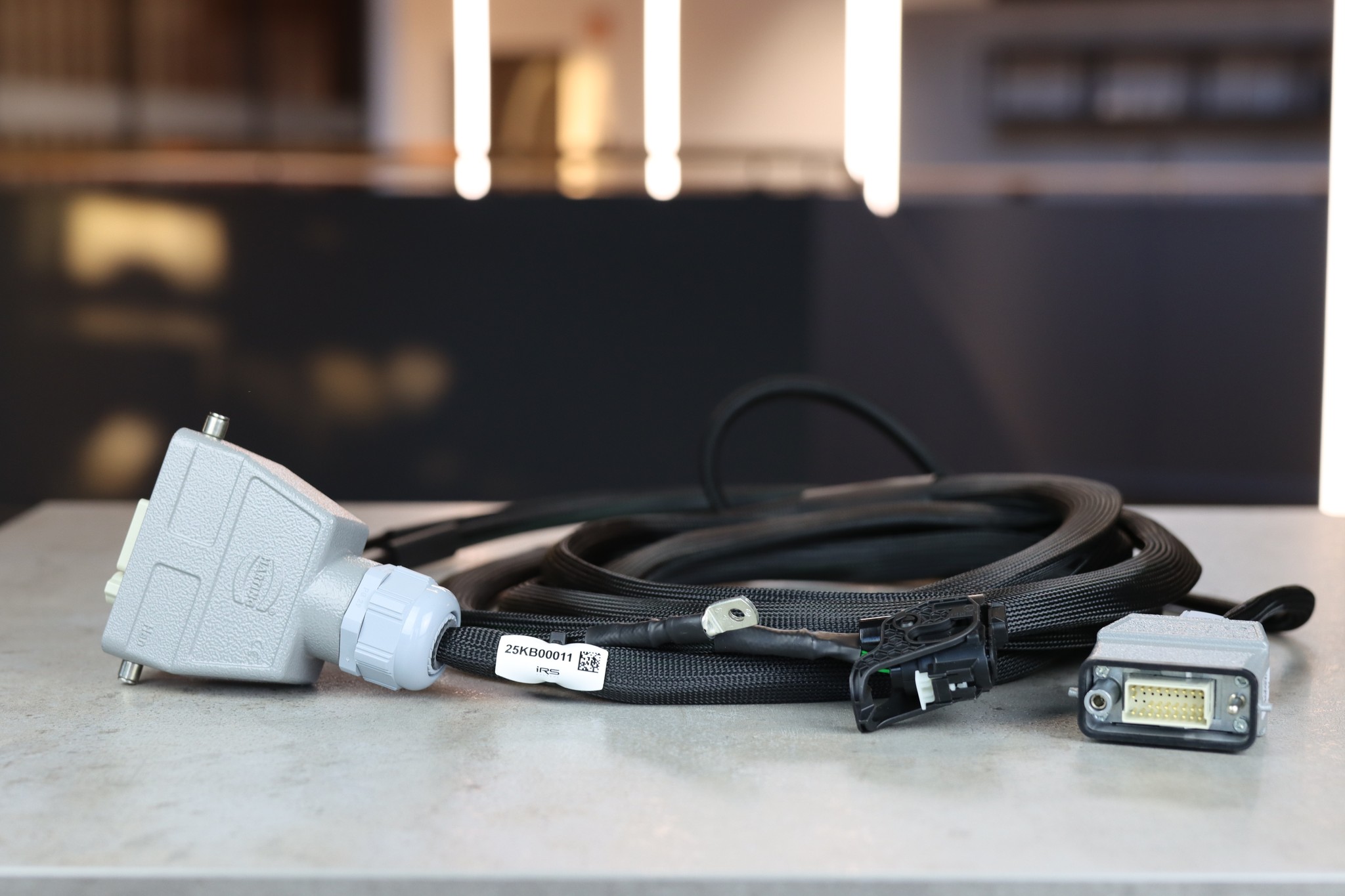

wiring harness manufacturing
