Current Measurement Module

Current Measurement Module

IRS CMM
IRS CMM
IRS CMM
IRS CMM

The current measuring modules from IRS enable high-precision monitoring of operating and standby currents, particularly for industrial applications such as in the automotive sector.

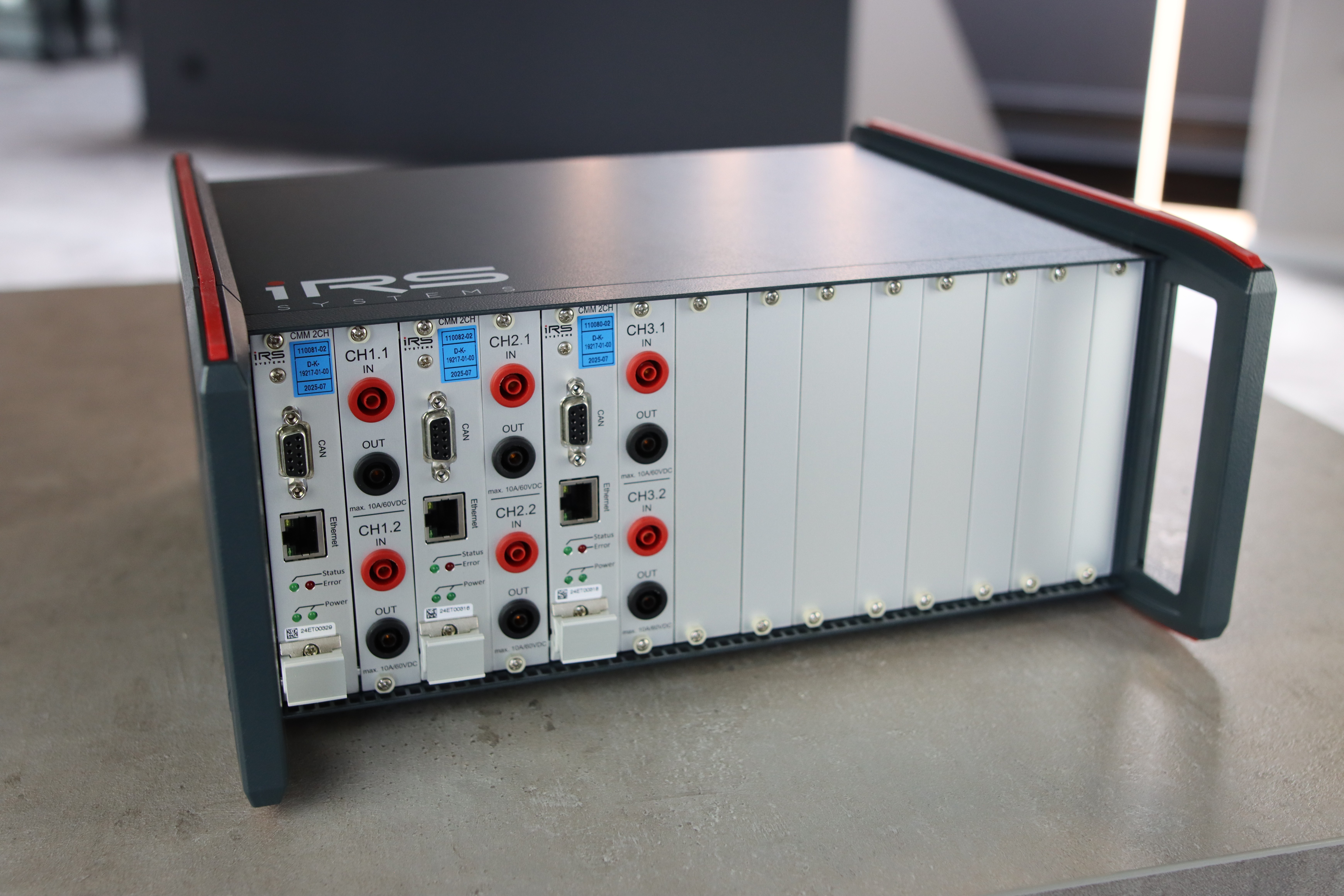

The CMM modules in Eurocard format can be mounted in a standard 19" assembly carrier and can also be integrated as a stand-alone device with one or more channels, for example, in a tabletop housing.

With their DAkkS calibratability, including an adjustment option and high reliability, the modules provide very accurate long-term measurement results.

A recalibration process can be easily and maintenance-friendly integrated.

All offered modules feature two communication interfaces that ensure configuration and measurement data acquisition:

  • CAN/ CAN FD

  • Ethernet

The current measuring modules from IRS enable high-precision monitoring of operating and standby currents, particularly for industrial applications such as in the automotive sector.
The CMM modules in Eurocard format can be mounted in a standard 19" assembly carrier and can also be integrated as a stand-alone device with one or more channels, for example, in a tabletop housing.

With their DAkkS calibratability, including an adjustment option and high reliability, the modules provide very accurate long-term measurement results.

A recalibration process can be easily and maintenance-friendly integrated.

All offered modules feature two communication interfaces that ensure configuration and measurement data acquisition:

  • CAN/ CAN FD

  • Ethernet

General Key Facts

  • Current measurement from 1 µA to a maximum of 190 A (depending on the module)

  • Automatic and uninterrupted switching between measurement ranges

  • Monitoring of min, max, and average values over any time period

  • Continuous measurement with sampling rates of up to 125 kSa/s

  • Integration into test environments via C# DLL or LabVIEW library

General Key Facts

  • Current measurement from 1 µA to a maximum of 190 A (depending on the module)

  • Automatic and uninterrupted switching between measurement ranges

  • Monitoring of min, max, and average values over any time period

  • Continuous measurement with sampling rates of up to 125 kSa/s

  • Integration into test environments via C# DLL or LabVIEW library

CMM IV

CMM IV

CMM IV

1 Current measurement channel

100 A continuous load


1 Current measurement channel

100 A continuous load


CMM-2CH

2 measurement channels

10 A continuous load


CMM-3CH

3 Measurement channels

5 A Continuous load


Comparison

Module

Module

CMM-IV

CMM-IV

CMM-2CH

CMM-2CH

CMM-3CH

CMM-3CH

Mess area

1 µA –

190 A

1 µA –

16 A

1 µA –

16 A

Max. load duration

100 A

10 A

5 A

Precision (type)

0,2 %

0,2 %

0,2 %

Channels per module

1

2

3

Sampling rate (max.)

125 kSa/s

1 kSa/s

1 kSa/s

Ethernet

CAN (Classic)

CAN-FD

Measuring range

1 µA – 190 A

1 µA – 16 A

1 µA – 16 A

Max. load duration

100 A

10 A

5 A

Accuracy (typ)

0.2 %

0.2%

0.2 %

Channels per module

1

2

3

Sampling rate (max.)

125 kSa/s

1 kSa/s

1 kSa/s

Ethernet

CAN (Classic)

CAN-FD

Measuring range

1 µA – 190 A

1 µA – 16 A

1 µA – 10 A

Maximum
Continuous Load

100 A

10 A

5 A

Accuracy (typ)

0.2%

0.2%

0.2%

Channels per module

1

2

3

Sampling rate (max.)

125 kSa/s

1 kSa/s

1 kSa/s

Ethernet

CAN (Classic)

Ethernet

CAN (Classic)

CAN-FD

accessories

Connector for all modules

For the easy contacting of our CMM, we offer various backplanes:

  • CMM IV Backplane CAN incl. VG24+8 - connector + 8 high-current contacts

  • CMM 2CH Backplane Rack

  • CMM 3CH Backplane Rack
