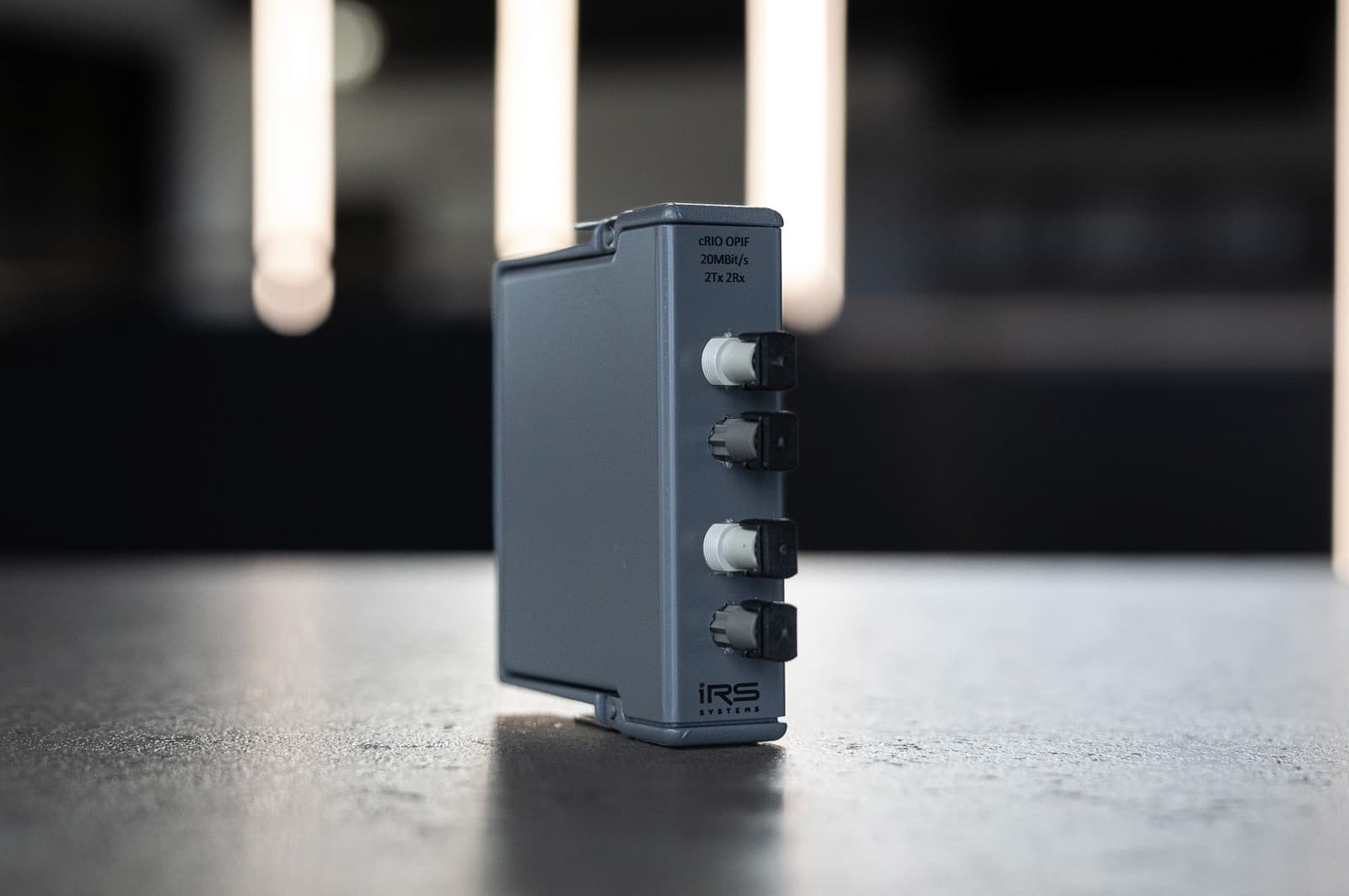

The "cRIO OPIF 20MBit/s" module is a powerful solution for optical communication over fiber optics (FO) in National Instruments Compact-RIO systems. It serves as an adapter module that enables the transition from electronic signals to optical transmissions, thereby ensuring reliable, high-frequency signal transmission over greater distances with minimal susceptibility to interference.
Technical Description
The module utilizes HFBR transmitter/receiver technology with a wavelength of 820 nm.
The components provide excellent coupling efficiency, compatible with a variety of fiber types. This technology ensures efficient coupling in fiber optic systems - Plastic-Clad Silica (PCS).
It is equipped with 2 transmitters and 2 receivers that allow stable communication over fiber optics. The module supports data rates of up to 20 MBit/s (without static signaling) and is compatible with widely used industrial connectors such as SC, ST, and SMA.
Thanks to the use of the 820 nm Miniature Link Series, a cost-effective and high-performance solution for optical communication, the module is capable of establishing reliable connections over several kilometers.
With an example for software integration in LabVIEW, the modules can be easily integrated into Compact-RIO-based systems, enhancing their flexibility and adaptability in industrial applications.
The "cRIO OPIF 20MBit/s" module is a powerful solution for optical communication over fiber optics (FO) in National Instruments Compact-RIO systems. It serves as an adapter module that enables the transition from electronic signals to optical transmissions, thereby ensuring reliable, high-frequency signal transmission over greater distances with minimal susceptibility to interference.
Technical Description
The module utilizes HFBR transmitter/receiver technology with a wavelength of 820 nm.
The components provide excellent coupling efficiency, compatible with a variety of fiber types. This technology ensures efficient coupling in fiber optic systems - Plastic-Clad Silica (PCS).
It is equipped with 2 transmitters and 2 receivers that allow stable communication over fiber optics. The module supports data rates of up to 20 MBit/s (without static signaling) and is compatible with widely used industrial connectors such as SC, ST, and SMA.
Thanks to the use of the 820 nm Miniature Link Series, a cost-effective and high-performance solution for optical communication, the module is capable of establishing reliable connections over several kilometers.
With an example for software integration in LabVIEW, the modules can be easily integrated into Compact-RIO-based systems, enhancing their flexibility and adaptability in industrial applications.
Technical Specifications
Wavelength: 820 nm
Data Rate: 0 … 20 MBit/s (without static signaling)
Transmitters: 2 transmitters
Receivers: 2 receivers
Connectors: SC, ST, SMA
Fibre Types: 50/125 µm, 62.5/125 µm, 100/140 µm, 200 µm
Transmission Distance: Up to several kilometers with the corresponding fibre types
Temperature Range: -20 °C to +55 °C
Software:
Example software for the cRIO available in LabVIEW
All relevant parameters configurable via software
Areas of Application
Optical Remote Control of Power Converters: Ideal for applications where galvanic isolation and reliable signal transmission over long distances are required.
Communication and Data Transmission via Optical Fibers: Particularly suitable for industrial applications that require high transmission speed and noise immunity over long distances.
High Insulation and Protection: By using optical fibers, high-voltage isolation and the avoidance of grounding loops are achieved.
Synchronization of Compact-RIO Chassis: Allows for precise synchronization within Compact-RIO-based systems via optical interfaces.
With flexible configuration and integration into existing systems, the "cRIO OPIF 20MBit/s" module provides an efficient solution for optical communication in various industrial applications.
Technical Specifications
Wavelength: 820 nm
Data Rate: 0 … 20 MBit/s (without static signaling)
Transmitters: 2 transmitters
Receivers: 2 receivers
Connectors: SC, ST, SMA
Fibre Types: 50/125 µm, 62.5/125 µm, 100/140 µm, 200 µm
Transmission Distance: Up to several kilometers with the corresponding fibre types
Temperature Range: -20 °C to +55 °C
Software:
Example software for the cRIO available in LabVIEW
All relevant parameters configurable via software
Areas of Application
Optical Remote Control of Power Converters: Ideal for applications where galvanic isolation and reliable signal transmission over long distances are required.
Communication and Data Transmission via Optical Fibers: Particularly suitable for industrial applications that require high transmission speed and noise immunity over long distances.
High Insulation and Protection: By using optical fibers, high-voltage isolation and the avoidance of grounding loops are achieved.
Synchronization of Compact-RIO Chassis: Allows for precise synchronization within Compact-RIO-based systems via optical interfaces.
With flexible configuration and integration into existing systems, the "cRIO OPIF 20MBit/s" module provides an efficient solution for optical communication in various industrial applications.
