# Signal Curves

URL: https://irs.systems/en/docs/level-converter/signal-curves

## K-Line

Settings: V<sub>Supply</sub> = 12V; J4 to Single; J7 to VCC (5V); K bridged to L; transmission = 0x55

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-256k-k.png" alt="Oscilloscope capture: 256 KBaud on K">
  <figcaption>Image 1: 256 KBaud on K</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-256k-rs232-rx.png" alt="Oscilloscope capture: 256 KBaud on RS232 Rx">

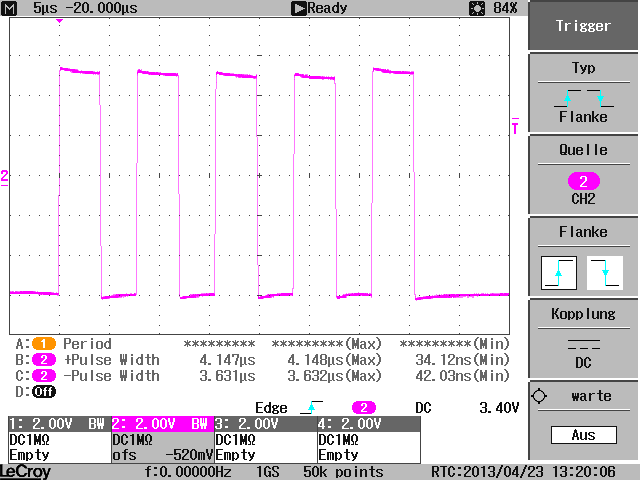

  <figcaption>Image 2: 256 KBaud on RS232 Rx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-500k-k.png" alt="Oscilloscope capture: 500 KBaud on K">

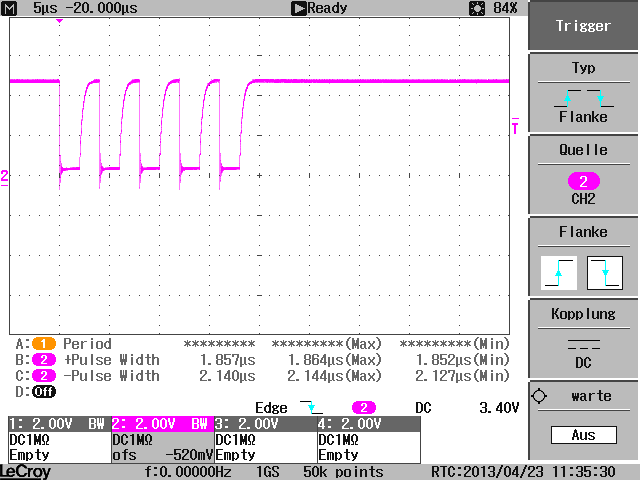

  <figcaption>Image 3: 500 KBaud on K</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-500k-rs232-rx.png" alt="Oscilloscope capture: 500 KBaud on RS232 Rx">
  <figcaption>Image 4: 500 KBaud on RS232 Rx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-1m-k.png" alt="Oscilloscope capture: 1 MBaud on K">

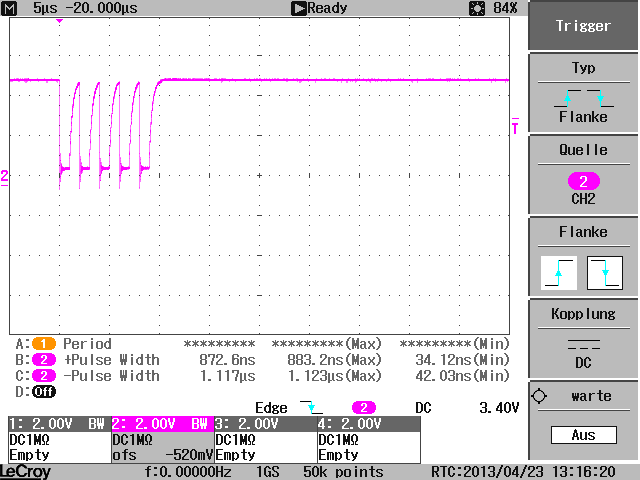

  <figcaption>Image 5: 1 MBaud on K</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-1m-rs232-rx.png" alt="Oscilloscope capture: 1 MBaud on RS232 Rx">

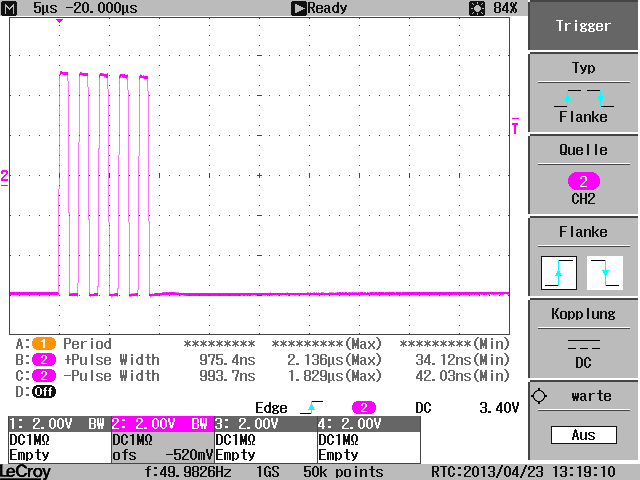

  <figcaption>Image 6: 1 MBaud on RS232 Rx</figcaption>
</figure>

## RS485

Settings: V<sub>Supply</sub> = 12V; jumper on J8 and J9; Tx<sub>p</sub> and Tx<sub>n</sub> bridged to Rx<sub>p</sub> and Rx<sub>n</sub>; transmission = 0x55

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-1m-rs485-tx.png" alt="Oscilloscope capture: 1 MBaud on RS485 Tx">

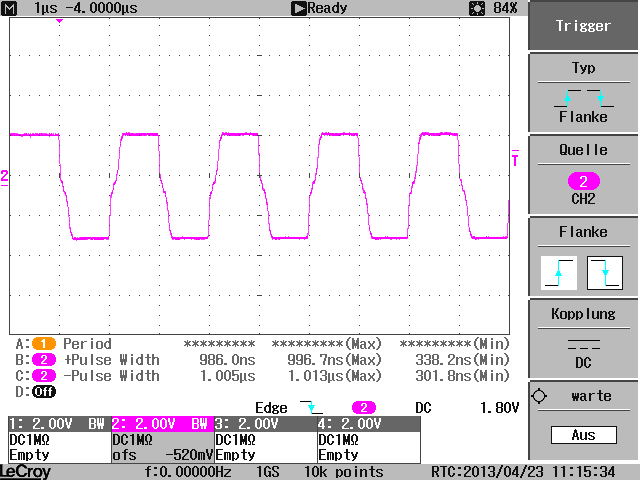

  <figcaption>Image 7: 1 MBaud on RS485 Tx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-1m-rs232-rx-rs485.png" alt="Oscilloscope capture: 1 MBaud on RS232 Rx">
  <figcaption>Image 8: 1 MBaud on RS232 Rx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-2m-rs485-tx.png" alt="Oscilloscope capture: 2 MBaud on RS485 Tx">

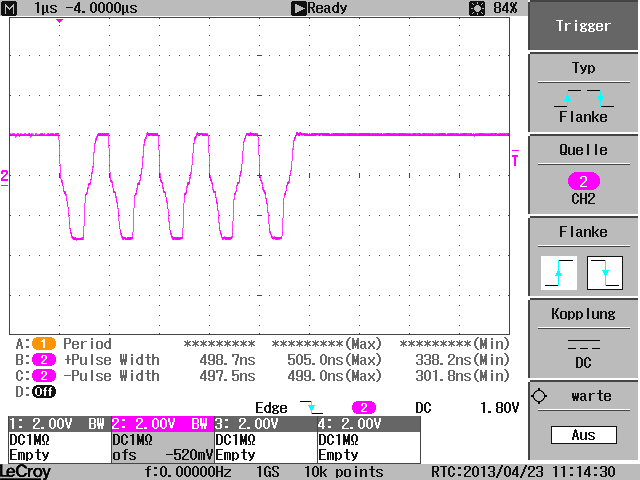

  <figcaption>Image 9: 2 MBaud on RS485 Tx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-2m-rs232-rx.png" alt="Oscilloscope capture: 2 MBaud on RS232 Rx">
  <figcaption>Image 10: 2 MBaud on RS232 Rx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-3m-rs485-tx.png" alt="Oscilloscope capture: 3 MBaud on RS485 Tx">

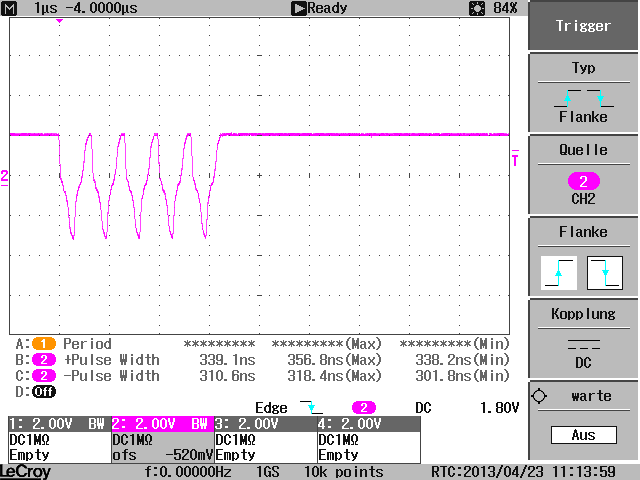

  <figcaption>Image 11: 3 MBaud on RS485 Tx</figcaption>
</figure>

<figure>
  <img src="/docs/assets/level-converter/images/lc-scope-3m-rs232-rx.png" alt="Oscilloscope capture: 3 MBaud on RS232 Rx">
  <figcaption>Image 12: 3 MBaud on RS232 Rx</figcaption>
</figure>
